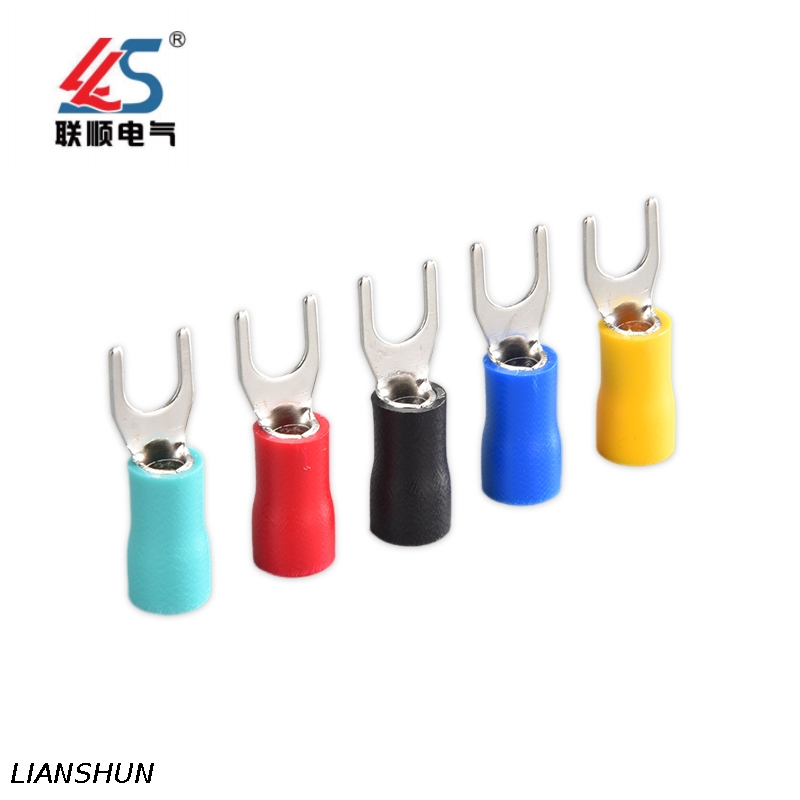

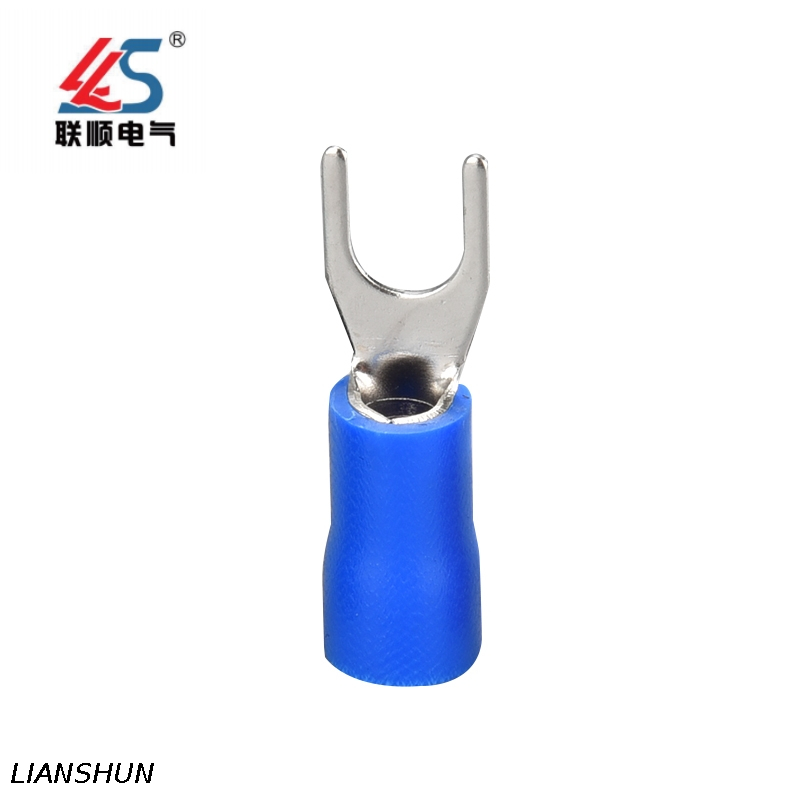

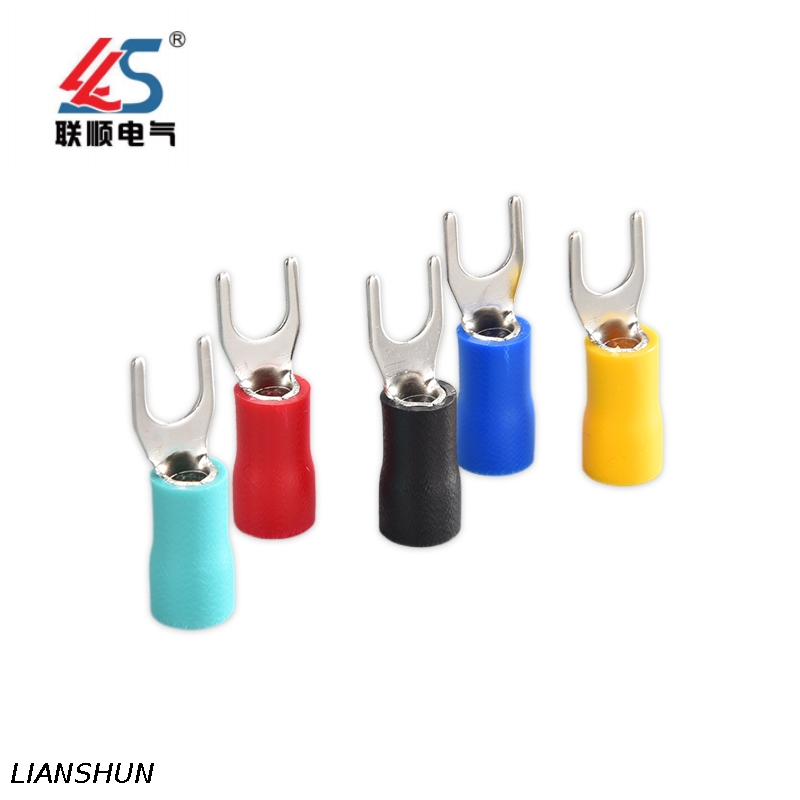

    Fork type insulated terminal

    Availability:
    Quantity:
    Inquire Add to Basket

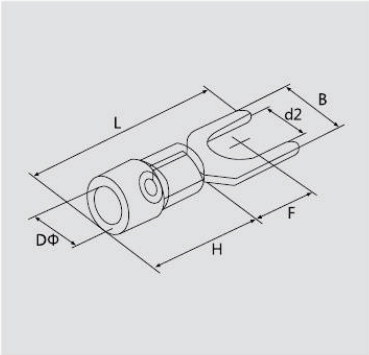

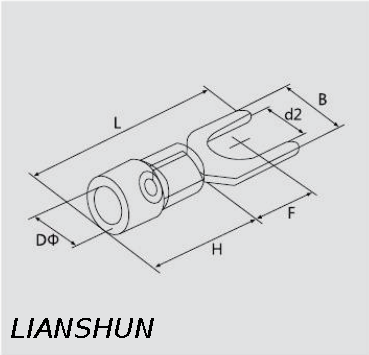

    屏幕截图 2024-06-13 160654

    Item d2 DØ B(mm) L(mm) F(mm) H(mm) Wire Rang(mm2)
    SV1.25-3 Ø3.2 4.3 5.6  22.1  6.3  11.0  0.5-1.5mm2
    SVS1.25-4 Ø4.3 6.4  22.1  6.4
    SVS1.25-5 Ø5.3 8.0  22.1  6.4
    SVS1.25-6 Ø6.4 9.5  22.1  6.4
    SV2-3 Ø3.2 4.9 5.7  22.2  6.5  11.0  1.5-2.5mm2
    SV2-4 Ø4.3 6.4  22.1  6.4
    SV2-5 Ø5.3 8.0  22.1  6.4
    SV2-6 Ø6.4 9.5  22.1  6.4
    SV3.5-4 Ø4.3
    		7.6  25.6  6.6  14.0  2.5-4mm2
    SV3.5-5 Ø5.3 7.8  25.6  7.0
    SV3.5-6 Ø6.4 11.9  29.3  9.5
    SVS5.5-4 Ø4.3 6.7 7.7  25.8  6.6  14.0  4-6mm2
    SV5.5-5 Ø5.3 8.7  25.8  7.0
    SV5.5-6 Ø6.4 8.7  25.8  7.3
    SV5.5-8 Ø8.4 13.9 31.8 11.3
