SV1.25-6
Lianshun
| Color: | |
|---|---|
| Quantity: | |

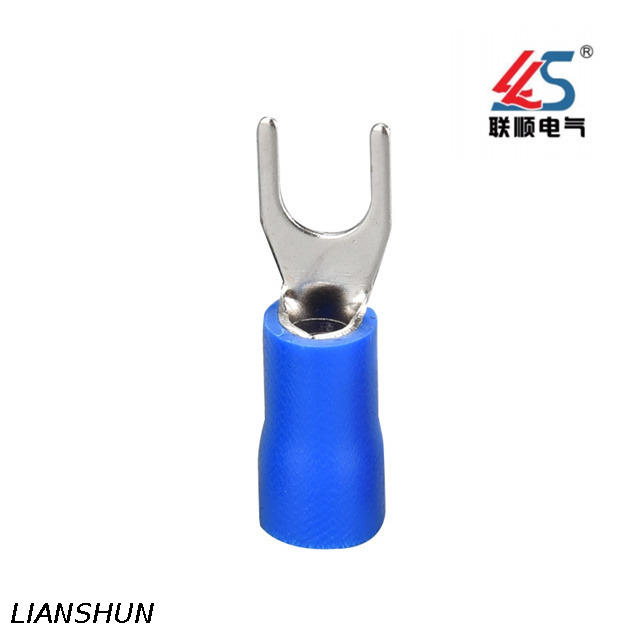

Heavy-duty insulated spade terminal crafted from 99.9% pure copper, ensuring ultra-low resistance for up to 60A continuous current. High-temperature PP sleeve withstands 125°C, ideal for automotive alternators, industrial machinery, and charging systems. Corrosion-resistant tin plating extends lifespan in humid environments
| Wire Range | ITEM NO | USA screw | Screw dia.d2(mm) | Dimension(mm) | Stand Color | Selected Color | ||||
| A.W.G/mm² | F | L | W | H | D | |||||
| 22~16AWG 0.5~1.5mm² | SV 1.25-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10 | 4.3 | Red | Red Blue Yellow Black Green Gray White |
| SV 1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||||
| SV 1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||||
| SV 1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||||
| SV 1.25-6 | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | |||||
| 16~14AWG 1.5~2.5mm² | SV 2-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10 | 4.9 | Blue | |
| SV 2-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||||
| SV 2-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||||
| SV 2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||||
| SV 2-6 | 1/4 | 6.4 | 12 | 21.2 | 11 | |||||
| 14~12AWG 2.5~4mm² | SV 3.5-3 | #4 | 3.2 | 5.7 | 24.8 | 7 | 13 | 6.2 | Black | |
| SV 3.35-4 | #8 | 4.3 | 8 | 24.8 | 7 | |||||
| SV 3.6-6 | 1/4 | 6.4 | 12 | 24 | 12.1 | |||||
| 12~10AWG 4~6mm² | SV 5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 13 | 6.7 | Yellow | |
| SV 5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | |||||
| SV 5.5-5 | #10 | 5.3 | 9 | 25.2 | 7.5 | |||||
| SV 5.5-6 | 1/4 | 6.4 | 9 | 25.2 | 7.5 | |||||
1: Are you a factory or trading company?
A: We are factory and specialized in terminal about 15 years.
2. How to buy the ideal products?
A: You can provide us your requirements, and we will produce it as the requirements. Or we can design it if you have the drawing.
3: How about the label and the logo?
A: Customize label and logo is workable.
4. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
5. What is the delivery time?
A: It depends on order quantity. And the delivery time will be within 15 to 30 days normally.
6. Package information
A: For inner box and master carton are made as per international standards, and we can make special designed for you if need. And if necessary, will be packed in pallet to avoid any damage.
B: Not more than 35kg per carton box, about 1000kg per pallet
7.How long to make a sample? Is it free?
A:7 days depending on the sample's complexity. Normally, our sample is free
8.How to contact us?
A: Send your inquiry details in the below, click "send" now!
