DBV5.5-18
Lianshun
| Color: | Please select |
|---|---|
| Quantity: | |

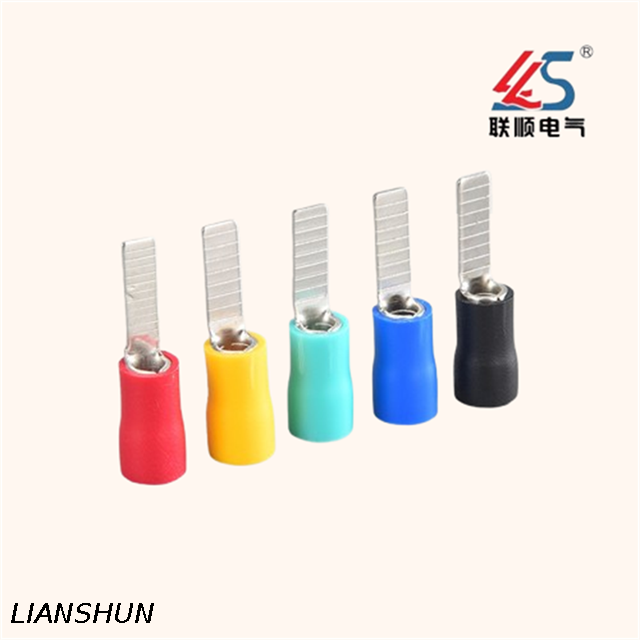

High-conductivity tin-plated copper blade terminal with dual-wall PP insulation, rated for 75A continuous current and -40°C to 125°C operating range. Designed for automotive fuse boxes, industrial control panels, and agricultural machinery. IP67 waterproof sealing to resist dust, oil, and vibration. Passes CE certification, ensuring reliability in high-stress environments.
| WIRE RANGE | ITEM NO | Dimension(mm) | Color | ||||
| A.W.G mm² | B | L | F | H | DΦ | ||
| 22-16 A.W.G 0.5-1.5 mm² | DBV1.25-10 | 2.3 | 20 | 10 | 10 | 4.3 | Red |
| DBV1.25-12 | 2.3 | 21 | 11 | ||||
| DBV1.25-14 | 2.3 | 24 | 14 | ||||
| DBV1.25-16 | 2.3 | 28 | 18 | ||||
| 16-14 A.W.G 1.5-2.5 mm² | DBV2-10 | 2.3 | 19 | 10 | 10 | 4.3 | Blue |
| DBV2-14 | 2.3 | 24 | 14 | ||||
| DBV2-18 | 2.3 | 28 | 18 | ||||
| 12-10 A.W.G 4-6 mm² | DBV5.5-10 | 2.8 | 22.5 | 10 | 13 | 6.7 | Yellow |
| DBV5.5-14 | 4.5 | 26.5 | 14 | ||||
| DBV5.5-18 | 4.5 | 30.5 | 18 | ||||
1: Are you a factory or trading company?
A: We are factory and specialized in terminal about 15 years.
2. How to buy the ideal products?
A: You can provide us your requirements, and we will produce it as the requirements. Or we can design it if you have the drawing.
3: How about the label and the logo?
A: Customize label and logo is workable.
4. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
5. What is the delivery time?
A: It depends on order quantity. And the delivery time will be within 15 to 30 days normally.
6. Package information
A: For inner box and master carton are made as per international standards, and we can make special designed for you if need. And if necessary, will be packed in pallet to avoid any damage.
B: Not more than 35kg per carton box, about 1000kg per pallet
7.How long to make a sample? Is it free?
A:7 days depending on the sample's complexity. Normally, our sample is free
8.How to contact us?
A: Send your inquiry details in the below, click "send" now
