PBDD5-250
Lianshun
| WIRE RANGE: | Please select |
|---|---|
| Quantity: | |

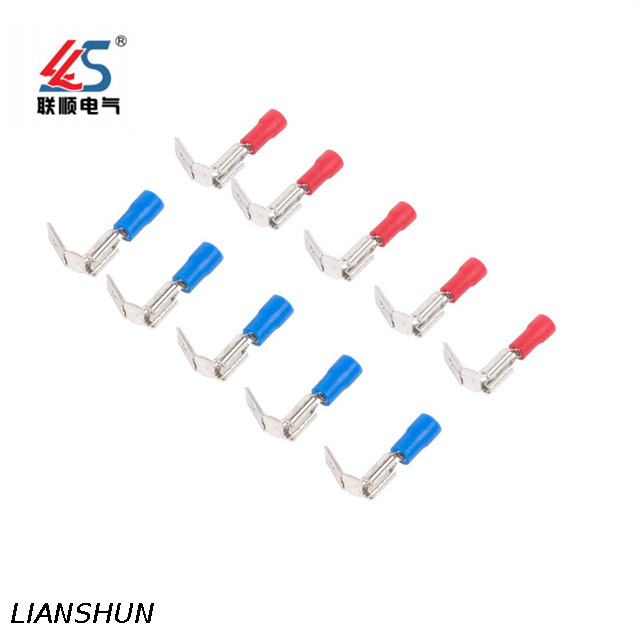

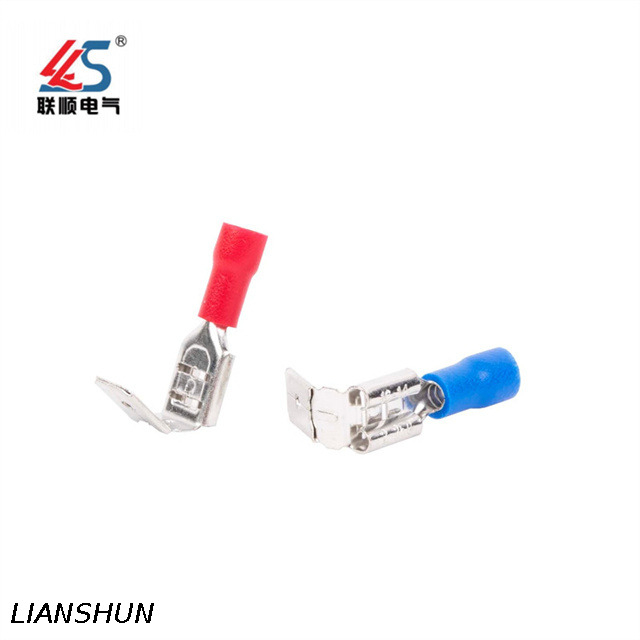

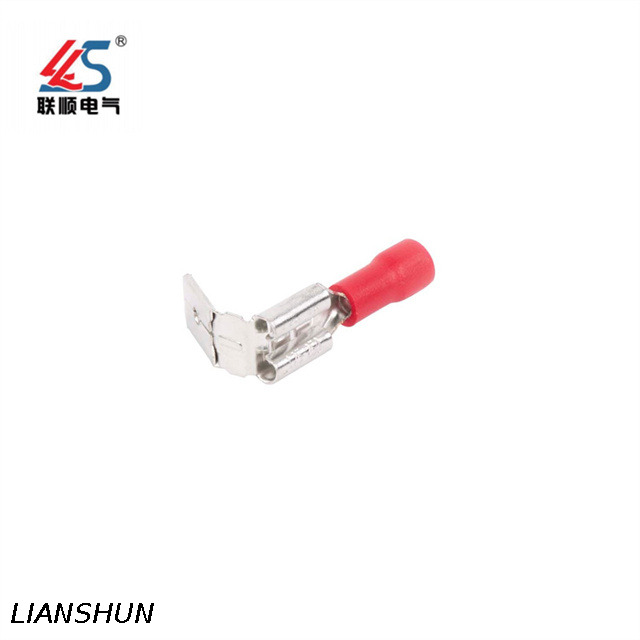

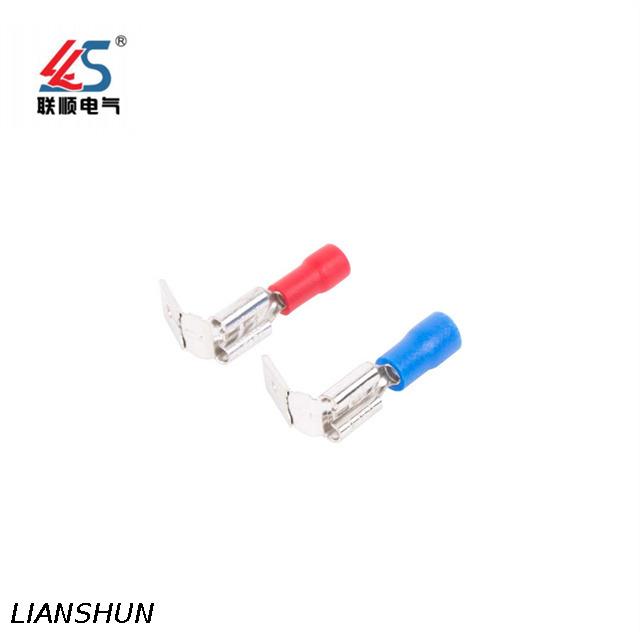

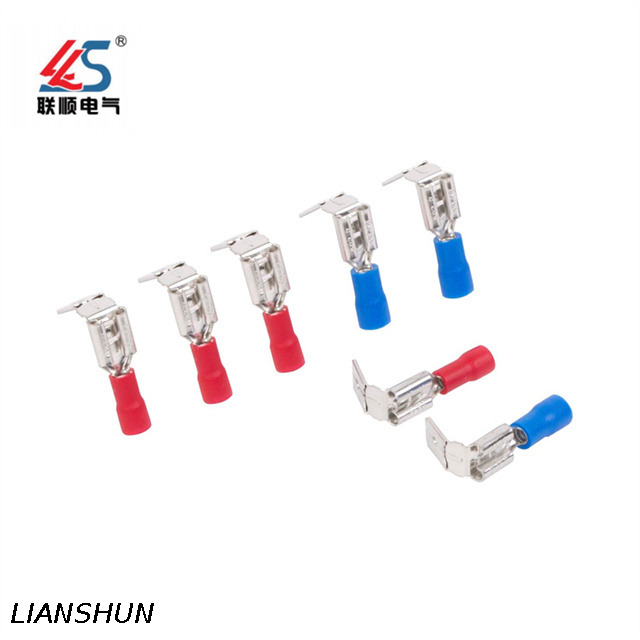

Engineered for multi-circuit applications, this piggy back disconnector combines a male blade and stackable female port in one compact unit, crafted from tin-plated copper with flame-retardant nylon insulation. It supports 19A/27A/48A continuous current and operates in -40°C to 105°C environments. The dual-layer design allows branching connections without extra space, ideal for automotive fuse boxes, industrial control panels, and smart home systems. Features
| WIRE RANGE | ITEM NO | Nema Tab(mm) | Dimension(mm) | |||||
| A.W.G mm² | B | B1 | H | D | d | L | ||
| 22~16 A.W.G 0.5~1.5mm² | PBDD1.25-250 | 0.8×6.35 | 7.4 | 6.3 | 10 | 3.8 | 1.7 | 21.5 |
| 16~14 A.W.G 1.5~2.5mm² | PBDD2-250 | 0.8×6.35 | 7.4 | 6.3 | 10 | 4.3 | 2.3 | 21.5 |
| 12~10 A.W.G 4~6mm² | PBDD5-250 | 0.8×6.35 | 7.4 | 6.3 | 10 | 5.7 | 3.4 | 25 |
1: Are you a factory or trading company?
A: We are factory and specialized in terminal about 15 years.
2. How to buy the ideal products?
A: You can provide us your requirements, and we will produce it as the requirements. Or we can design it if you have the drawing.
3: How about the label and the logo?
A: Customize label and logo is workable.
4. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
5. What is the delivery time?
A: It depends on order quantity. And the delivery time will be within 15 to 30 days normally.
6. Package information
A: For inner box and master carton are made as per international standards, and we can make special designed for you if need. And if necessary, will be packed in pallet to avoid any damage.
B: Not more than 35kg per carton box, about 1000kg per pallet.
7.How long to make a sample? Is it free?
A:7 days depending on the sample's complexity. Normally, our sample is free.
8.How to contact us?
A: Send your inquiry details in the below, click "send" now.
