EN10-18
Lianshun
| WIRE RANGE: | Please select |
|---|---|
| Quantity: | |

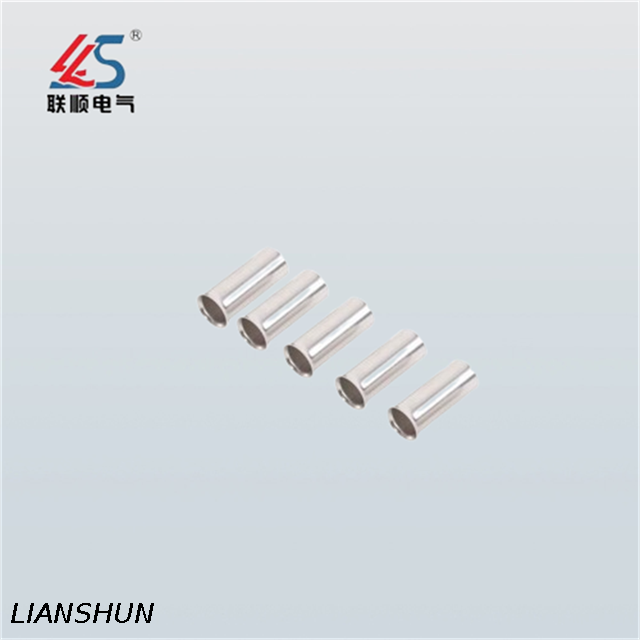

Made of 99.9% oxygen-free copper with tin plating, this bare cord end terminal supports 50A continuous current and operates from -30°C to 100°C. Compatible, it ensures secure crimping for industrial motor leads, automotive wiring, and power distribution panels. Features a flared tube design for easy insertion and complies with CE standards for corrosion resistance.
| WIRE RANGE | ITEM NO | Dimension(mm) | |||
| A.W.G mm² | L | D | C | B | |
| 26 A.W.G 0.22mm² | EN0206 | 6 | 1 | 0.7 | 1.4 |
| EN0208 | 8 | ||||
| 24 A.W.G 0.3mm² | EN0306 | 6 | 1.1 | 0.8 | 1.5 |
| EN0308 | 8 | ||||
| 22 A.W.G 0.5mm² | EN0506 | 6 | 1.3 | 1 | 1.7 |
| EN0508 | 8 | ||||
| EN0510 | 10 | ||||
| 20 A.W.G 0.75mm² | EN7506 | 6 | 1.6 | 1.3 | 1.9 |
| EN7508 | 8.8 | ||||
| EN7510 | 10 | ||||
| EN7512 | 12 | ||||
| 18 A.W.G 1.0mm² | EN1006 | 6 | 1.8 | 1.5 | 2.2 |
| EN1008 | 8 | ||||
| EN1012 | 12 | ||||
| 16 A.W.G 1.5mm² | EN1507 | 7 | 2.1 | 1.8 | 2.5 |
| EN1508 | 8 | ||||
| EN1510 | 10 | ||||
| EN1512 | 12 | ||||
| 14 A.W.G 2.5mm² | EN2507 | 7 | 2.6 | 2.3 | 3.3 |
| EN2508 | 8 | ||||
| EN2510 | 10 | ||||
| EN2512 | 12 | ||||
| 12 A.W.G 4mm² | EN4009 | 9 | 3.2 | 2.8 | 3.9 |
| EN4012 | 12 | ||||
| 10 A.W.G 2.5mm² | EN6010 | 10 | 3.9 | 3.5 | 4.8 |
| EN6012 | 12 | ||||
| EN6018 | 18 | ||||
| 8 A.W.G 10mm² | EN10-12 | 12 | 4.9 | 4.5 | 5.8 |
| EN10-18 | 18 | ||||
| 6 A.W.G 16mm² | EN16-12 | 12 | 6.2 | 5.8 | 7.2 |
| EN16-15 | 15 | ||||
| EN16-18 | 18 | ||||
| 4 A.W.G 25mm² | EN25-16 | 16 | 7.9 | 7.5 | 9.1 |
| EN25-22 | 22 | ||||
| 2 A.W.G 35mm² | EN35-16 | 16 | 8.7 | 8.3 | 10.2 |
| EN35-25 | 25 | ||||
| 1/0 A.W.G 20mm² | EN50-20 | 20 | 10.9 | 10.3 | 12.4 |
| EN50-25 | 25 | ||||
| 2/0 A.W.G 70mm² | EN70-22 | 22 | 14.3 | 13.5 | 15.8 |
| EN70-25 | 25 | ||||
1: Are you a factory or trading company?
A: We are factory and specialized in terminal about 15 years.
2. How to buy the ideal products?
A: You can provide us your requirements, and we will produce it as the requirements. Or we can design it if you have the drawing.
3: How about the label and the logo?
A: Customize label and logo is workable.
4. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
5. What is the delivery time?
A: It depends on order quantity. And the delivery time will be within 15 to 30 days normally.
6. Package information
A: For inner box and master carton are made as per international standards, and we can make special designed for you if need. And if necessary, will be packed in pallet to avoid any damage.
B: Not more than 35kg per carton box, about 1000kg per pallet.
7.How long to make a sample? Is it free?
A:7 days depending on the sample's complexity. Normally, our sample is free.
8.How to contact us?
A: Send your inquiry details in the below, click "send" now.
