E70-27
Lianshun
| Color: | |
|---|---|
| Quantity: | |

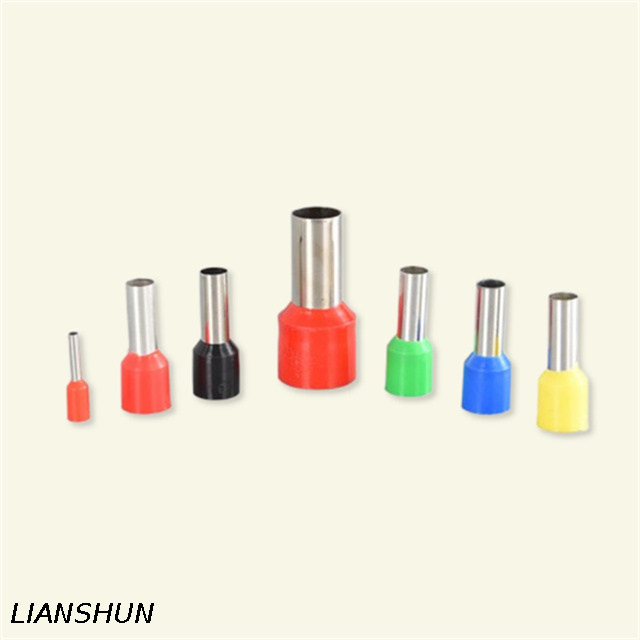

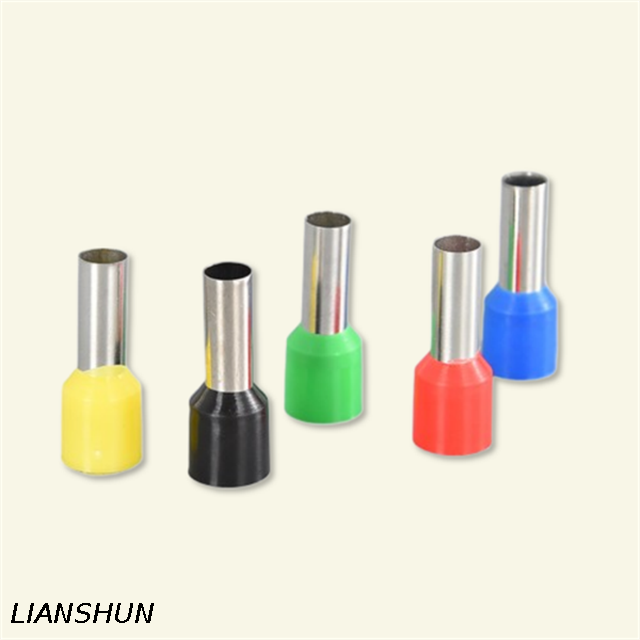

Heavy-duty insulated terminal with a flared design for easy wire insertion. Protects against abrasion and accidental disconnections. Compatible with crimping tools for fast assembly. Ideal for aerospace, telecom, and power distribution panels. Customizable color/size options available for bulk orders.
| A.W.G/mm² | ITEM NO | Dimension (mm) | Color | Selected Color | ||||
| F | L | B | CΦ | DΦ | (1): German (2): French | |||
| 26AWG/0.25mm² | E0206 | 6 | 10.5 | 2.5 | 1 | 0.7 | Light Blue | Red Blue Yellow Black Green Gray White Orange Brown |
| E0208 | 8 | 12 | ||||||
| 24AWG 0.34mm² | E0306 | 8 | 10.5 | 2.5 | 1.1 | 0.8 | Triqipose | |
| E0308 | 8 | 12.5 | ||||||
| 22AWG 0.5mm² | E0506 | 6 | 12 | 2.6 | 1.3 | 1 | Orange(1) White(2) | |
| E0508 | 8 | 14 | ||||||
| E0510 | 10 | 16 | ||||||
| E0512 | 12 | 18 | ||||||
| 20AWG 0.45mm² | E7506 | 6 | 12.4 | 2.8 | 1.6 | 1.3 | White(1) Blue(2) | |
| E7508 | 8 | 14.6 | ||||||
| E7510 | 10 | 16.4 | ||||||
| E7512 | 12 | 18.4 | ||||||
| 18AWG 1.0mm² | E1006 | 6 | 12.4 | 3 | 1.8 | 1.5 | Yellow(1) Red(2) | |
| E1008 | 8 | 14.4 | ||||||
| E1010 | 10 | 16.4 | ||||||
| E1012 | 12 | 18.4 | ||||||
| 16AWG 1.5mm² | E1508 | 8 | 14.6 | |||||
| E1510 | 10 | 16.4 | 3.5 | 2.1 | 1.8 | Red(1) Black(2) | ||
| E1512 | 12 | 18.4 | ||||||
| E1518 | 18 | 24.4 | ||||||
| 14AWG 2.5mm² | E2508 | 8 | 15.2 | 4 | 2.3 | 2.3 | Blue(1) Gray(2) | |
| E2510 | 10 | 17.2 | ||||||
| E2512 | 12 | 19.2 | ||||||
| E2518 | 18 | 25.2 | ||||||
| 12AWG 4.0mm² | E4009 | 9 | 16.5 | 4.4 | 3.2 | 2.8 | Gray(1) Orange(2) | |
| E4012 | 12 | 19.5 | ||||||
| 10AWG 6.0mm² | E6010 | 10 | 20 | 6.3 | 3.9 | 3.5 | Block(1) Green(2) | |
| E6012 | 12 | 22 | ||||||
| 8AWG 10mm² | E10-12 | 12 | 21.5 | 7.6 | 4.9 | 4.5 | Milk(1) Brow(2) | |
| E10-18 | 18 | 27.5 | ||||||
| 6AWG 16mm² | E16-12 | 16 | 22.2 | 8.8 | 6.2 | 5.8 | Green(1) Milk(2) | |
| E16-18 | 22 | 28.2 | ||||||
| 4AWG 25mm² | E25-16 | 16 | 29 | 11.2 | 7.9 | 7.5 | Yellow(1) Red(2) | |
| E25-22 | 20 | 35 | ||||||
| 2AWG 35mm² | E35-16 | 20 | 30 | 12.7 | 8.7 | 8.3 | Gray | |
| E35-25 | 25 | 39 | ||||||
| 1/0AWG 50mm² | E50-20 | 27 | 36 | 15.3 | 10.9 | 10.3 | Olive | |
| E50-25 | 25 | 41 | ||||||
| 2/0AWG 50mm² | E70-20 | 20 | 37 | 16 | 14.3 | 13.5 | Yellow | |
| E70-25 | 27 | 42 | ||||||
| 3/0AWG 70-95mm² | E95-25 | 25 | 44 | 18.5 | 15.3 | 14.5 | Red | |
| 4/0AWG 120mm² | E120-27 | 27 | 47.6 | 20.3 | 17.5 | 16.5 | Blue | |
| 250/300AWG 150mm² | E150-25 | 25 | 50.6 | 23.4 | 20.6 | 19.6 | Yellow | |
1: Are you a factory or trading company?
A: We are factory and specialized in terminal about 15 years.
2. How to buy the ideal products?
A: You can provide us your requirements, and we will produce it as the requirements. Or we can design it if you have the drawing.
3: How about the label and the logo?
A: Customize label and logo is workable.
4. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
5. What is the delivery time?
A: It depends on order quantity. And the delivery time will be within 15 to 30 days normally.
6. Package information
A: For inner box and master carton are made as per international standards, and we can make special designed for you if need. And if necessary, will be packed in pallet to avoid any damage.
B: Not more than 35kg per carton box, about 1000kg per pallet.
